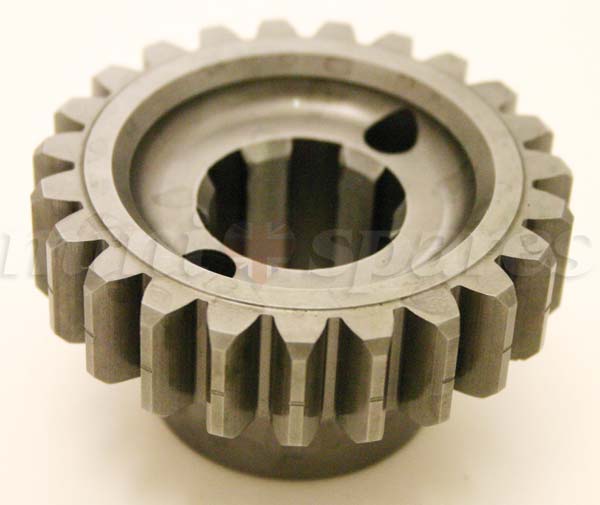

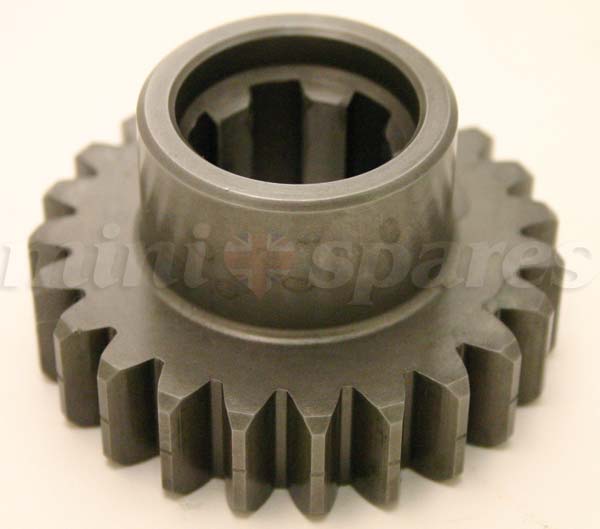

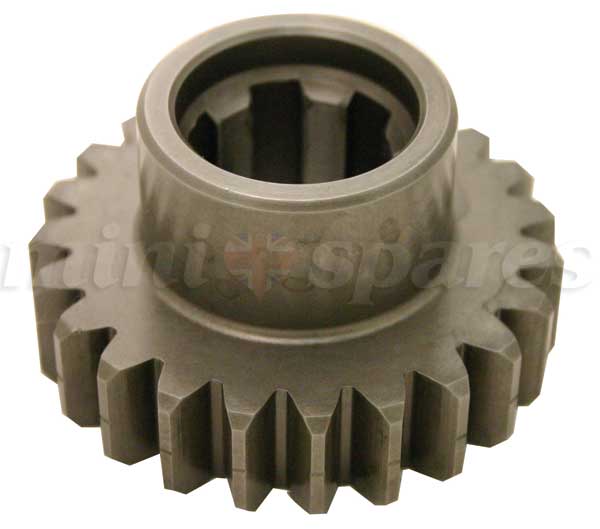

Input gear 23 teeth straight cut

Straight cut teeth broach gear for the 1st motion shaft which runs with the straight cut idler and primary gear combinations. This has 23 teeth and one identification ring on actual teeth. Achievable drop gear ratios when using our Evolution gears:22 tooth primary – 30 tooth idler – 25 tooth input = 1.136-124 tooth primary – 30 tooth idler – 24 tooth input = 1.0-123 tooth primary – 30 tooth idler – 23 tooth input = 1.0-124 tooth primary – 30 tooth idler – 25 tooth input = 1.0416-123 tooth primary – 30 tooth idler – 24 tooth input = 1.0434-122 tooth primary – 30 tooth idler – 23 tooth input = 1.045-1 23 tooth primary – 30 tooth idler – 25 tooth input = 1.0869-122 tooth primary – 30 tooth idler – 24 tooth input = 1.09-124 tooth primary – 30 tooth idler – 23 tooth input = 0.958-1
